1803455 | Phoenix Contact

Pin header, 5 pole, pitch 3.81 mm, straight, green, 1803455

Order No.: 63P3278
EAN: 4017918045760
MPN:
1803455
MCV 1,5/ 5-G-3,81
Series: MCV
Phoenix Contact

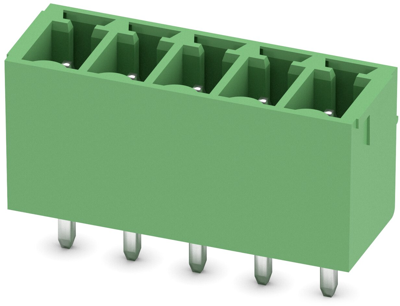

1803455 Phoenix Contact PCB Connection Systems Image 1

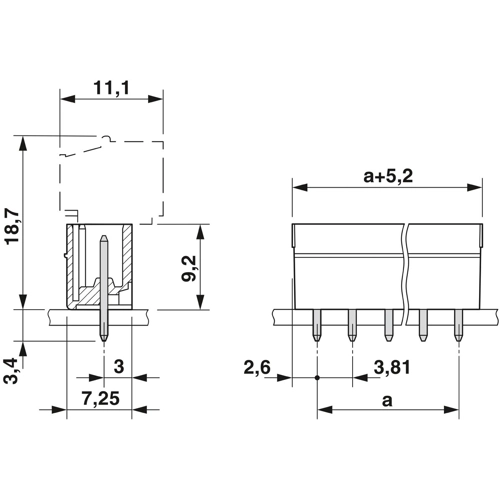

1803455 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.6660 € *
Available: 147 pcs.
Available in 10 days: 42,407 pcs.
Leadtime: 2 Weeks **
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
25 pcs.
1.4161 €
100 pcs.
1.3209 €
250 pcs.
1.2495 €
1000 pcs.
1.1424 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB Connector, 1803455, PHOENIX

Printed circuit board base strip, rated current: 8 A, rated voltage (III/2): 160 V, number of poles: 5, grid spacing: 3.81 mm, color: green, contact surface: tin, mounting: wave soldering.

Technical specifications
Connection solder connection
Connection plating tin-plated
Number of rows 1
Version pin header
Additional parts equipped
Colour green
Contact type pin
contact surface tin-plated
Rated voltage 160 V
Rated current 8 A
Orientation straight
Pin number 5 pole
Grid 3.81 mm
Type of locking No
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
