1804878 | Phoenix Contact

Pin header, 10 pole, pitch 7.62 mm, angled, green, 1804878

Order No.: 51F7630
EAN: 4017918046316
MPN:
1804878
PC 4/10-G-7,62
Series: PC

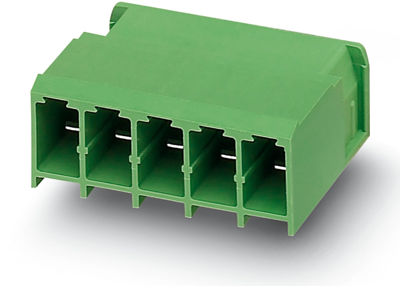

1804878 Phoenix Contact PCB Connection Systems Image 1

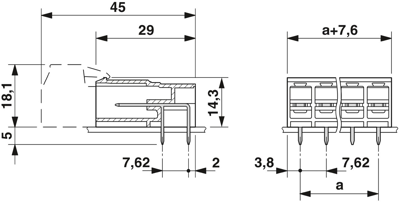

1804878 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
7.7231 € *
Available: 0 pcs.
Available in 10 days: 737 pcs.
Leadtime: 1 Week **
Total Price:
7.72 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.7231 €

Pin headers and multipole connectors, type Phoenix Contact POWER COMBICON.

Rated voltage/rated current: 400V/20A (IEC/DIN, VDE), 300V/20A (CSA), 300V/35A (CUL, UL).

Pin headers, angled, 7.62 mm grid, type PC 4/..-G-7,62.

Technical attributes (type, number of poles): PC 4/10-G-7,62, 10-pole

Technical specifications
Anschluss Lötanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Farbe grün
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 630 V
Nennstrom 20 A
Orientierung abgewinkelt
Polzahl 10-polig
Rastermaß 7.62 mm
Verriegelung Nein
Logistics
Ursprungsland DE
Zolltarifnummer 85366930
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
