1829468 | Phoenix Contact

Pin header, 15 pole, pitch 3.81 mm, straight, green, 1829468

Order No.: 62P6317
EAN: 4017918051143
MPN:
1829468
DFK-MC 1,5/15-GF-3,81
Series: DFK

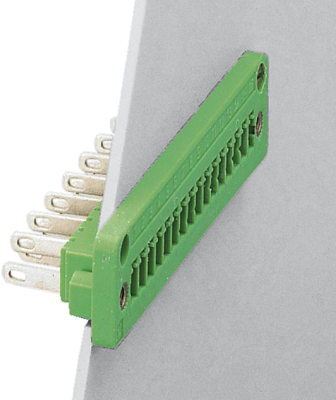

1829468 Phoenix Contact PCB Connection Systems Image 1
1829468 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
8.4728 € *
Available: 0 pcs.
Available in 10 days: 150 pcs.
Leadtime: 1 Week **
Total Price:
423.64 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
8.4728 €

Feed-through header, 1829468, Phoenix Contact

Feed-through header, nominal cross section: 1.5 mm², color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 15, Number of rows: 1, Number of positions per row: 15, number of connections: 15, product range: DFK-MC 1,5/..-GF, pitch: 3.81 mm, connection method: Solder/Slip-on connection, mounting: Direct mounting, pin layout: Linear pinning, solder pin [P]: 9.4 mm, plug-in system: MINI COMBICON, Locking: Screw locking, type of packaging: packed in cardboard

Features

  • Free choice – permanent solder connection or standardized slip-on connection
  • Cable connection on the inside of the device enables flexible positioning of the panel feed-through
Technical specifications
Anschluss Löt-/Steckanschluss
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Farbe grün
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 160 V
Nennstrom 8 A
Orientierung gerade
Polzahl 15-polig
Rastermaß 3.81 mm
Verriegelung Ja
Logistics
Ursprungsland PL
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
