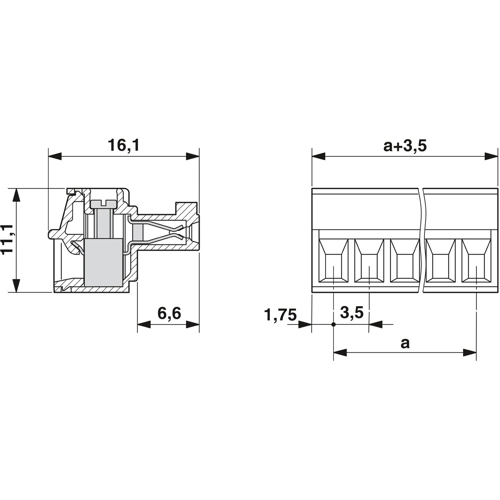

1840405 | Phoenix Contact
Socket header, 6 pole, pitch 3.5 mm, straight, green, 1840405
Unit Price (€ / pc.)
5.3431 € *
Available: 71 pcs.
Available in 10 days: 19,890 pcs.
Leadtime: 1 Week **
Total Price:
5.34 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3431 €
10 pcs.
4.9147 €
50 pcs.
4.4744 €
100 pcs.
4.0222 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connector, 1840405, PHOENIX
PCB plug, rated current: 8 A, rated voltage (III/2): 160 V, number of poles: 6, grid spacing: 3.5 mm, connection type: screw connection with tension sleeve, color: green, contact surface: tin.
Technical specifications
| Anschluss | Schraubanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | grün | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 160 V | |
| Nennstrom | 8 A | |
| Orientierung | gerade | |
| Polzahl | 6-polig | |
| Rastermaß | 3.5 mm | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
