1847152 | Phoenix Contact

PCB base strip, 7 pole, pitch 5.08 mm, angled, green, 1847152

Order No.: 64P2631
EAN: 4063151330804
MPN:
1847152
Series: MSTBO 2,5
Phoenix Contact
1847152 Phoenix Contact PCB Connection Systems

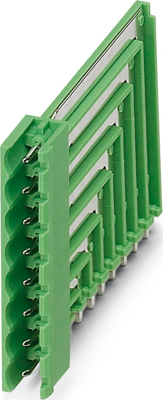

Image may differ
Unit Price (€ / pc.)
4.4625 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
4.46 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4625 €
10 pcs.
4.1055 €
50 pcs.
3.7723 €
100 pcs.
3.3915 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB header, 1847152, Phoenix Contact

PCB header, Nominal cross section: 2.5 mm², Color: green, Nominal current: 8 A, Rated voltage (III/2): 320 V, Contact surface: Sn, Contact connection type: Pin, Number of potentials: 7, Number of rows: 1, Number of positions: 7, Number of connections: 7, Product range: MSTBO 2,5/..-GR, Pitch: 5.08 mm, Mounting: Wave soldering, Pin layout: Linear pinning, Solder pin [P]: 3.2 mm, Number of solder pins per potential: 1, Plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Orthogonal, Locking: without, Mounting method: without.

Features

  • Well-known mounting principle allows worldwide use
  • Can be combined with the MSTB 2,5 range
  • Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Technical specifications
Connection solder connection
Number of rows 1
Version pin header
Colour green
Contact type pin
contact surface tin-plated
Rated voltage 320 V
Rated current 8 A
Orientation angled
Pin number 7 pole
Grid 5.08 mm
Type of locking No
Logistics
Country of origin PL
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
