1849023 | Phoenix Contact

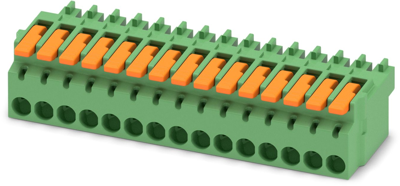

Socket header, 15 pole, pitch 3.81 mm, straight, green, 1849023
Unit Price (€ / pc.)
12.1737 € *
Available: 0 pcs.
Available in 10 days: 50 pcs.
Leadtime: 2 Weeks **
PCB connector, 1849023, Phoenix Contact
PCB connector, Nominal cross section: 1.5 mm2, Color: green, Nominal current: 8 A, Rated voltage (III/2): 160 V, Contact surface: Tin, Contact connection type: Socket, Number of rows: 1, Number of positions: 15, Product range: LPC 1,5/..-ST, Pitch: 3.81 mm, Connection method: Lever Push-in connection, Conductor/PCB connection direction: 0 °, Locking clip: - Locking clip, Plug-in system: COMBICON MC 1,5, Locking: without, Mounting: without.
Features
- Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules
- Clear lever positions provide reliable feedback on opened or closed clamping spaces
- Time-saving push-in connection when lever is closed
- Quick and convenient testing using integrated test option
Technical specifications
| Connection | Push-in Federanschluss | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Colour | grün | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 160 V | |
| Rated current | 8 A | |
| Orientation | gerade | |
| Pin number | 15-polig | |
| Grid | 3.81 mm | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
