1849117 | Phoenix Contact

Socket header, 9 pole, pitch 3.81 mm, straight, green, 1849117

Order No.: 64P1956
EAN: 4055626344195
MPN:
1849117
LPC 1,5/ 9-STF-3,81
Series: LPC
Phoenix Contact
1849117 Phoenix Contact PCB Connection Systems

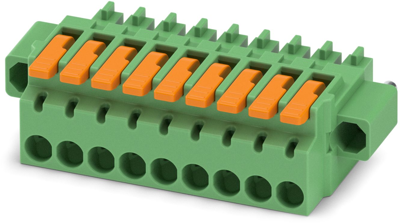

Image may differ
Unit Price (€ / pc.)
8.3538 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
8.35 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
8.3538 €

PCB connector, 1849117, Phoenix Contact

PCB connector, Nominal cross section: 1.5 mm2, Color: green, Nominal current: 8 A, Rated voltage (III/2): 160 V, Contact surface: Tin, Contact connection type: Socket, Number of rows: 1, Number of positions: 9, Product range: LPC 1,5/..-STF, Pitch: 3.81 mm, Connection method: Lever Push-in connection, Conductor/PCB connection direction: 0 °, Locking clip: - without locking clip, Plug-in system: COMBICON MC 1,5, Locking: Screw locking mechanism, Mounting: Screw flange.

Features

  • Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules
  • Clear lever positions provide reliable feedback on opened or closed clamping spaces
  • Time-saving push-in connection when lever is closed
  • Screwable flange for superior mechanical stability
  • Quick and convenient testing using integrated test option
Technical specifications
Connection push-in spring connection
Number of rows 1
Version socket header
Colour green
Contact type socket
contact surface tin-plated
Rated voltage 160 V
Rated current 8 A
Orientation straight
Pin number 9 pole
Grid 3.81 mm
Type of locking Yes
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
