1849311 | Phoenix Contact

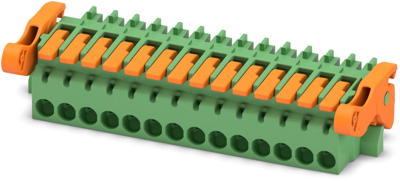

Socket header, 14 pole, pitch 3.81 mm, straight, green, 1849311

Order No.: 64P2053
EAN: 4055626344645
MPN:
1849311
LPC 1,5/14-ST-3,81-LR
Series: LPC
1849311 Phoenix Contact PCB Connection Systems
Image may differ
Unit Price (€ / pc.)
12.3760 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
618.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
12.3760 €

PCB connector, 1849311, Phoenix Contact

PCB connector, Nominal cross section: 1.5 mm2, Color: green, Nominal current: 8 A, Rated voltage (III/2): 160 V, Contact surface: Tin, Contact connection type: Socket, Number of rows: 1, Number of positions: 14, Product range: LPC 1,5/..-ST-LR, Pitch: 3.81 mm, Connection method: Lever Push-in connection, Conductor/PCB connection direction: 0 °, Locking clip: - without locking clip, Plug-in system: COMBICON MC 1,5, Locking: Snap-in locking, Mounting: Lock & Release ejector lever.

Features

  • Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules
  • Clear lever positions provide reliable feedback on opened or closed clamping spaces
  • Time-saving push-in connection when lever is closed
  • Automatic locking and intuitive release through Lock and Release operating lever in contrasting color
  • Quick and convenient testing using integrated test option
Technical specifications
Anschluss Push-in Federanschluss
Anzahl der Reihen 1
Ausführung Buchsenleiste
Farbe grün
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 160 V
Nennstrom 8 A
Orientierung gerade
Polzahl 14-polig
Rastermaß 3.81 mm
Verriegelung Ja
Logistics
Ursprungsland PL
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
