1850495 | Phoenix Contact

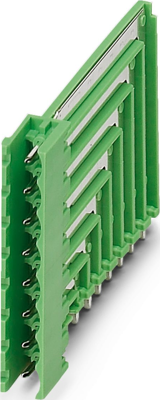

PCB base strip, 8 pole, pitch 5.08 mm, angled, green, 1850495
Unit Price (€ / pc.)
4.5339 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
4.53 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5339 €
10 pcs.
4.1769 €
50 pcs.
3.8437 €
100 pcs.
3.4629 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB header, 1850495, Phoenix Contact
PCB header, Nominal cross section: 2.5 mm², Color: green, Nominal current: 8 A, Rated voltage (III/2): 320 V, Contact surface: Sn, Contact connection type: Pin, Number of potentials: 8, Number of rows: 1, Number of positions: 8, Number of connections: 8, Product range: MSTBO 2,5/..-GL, Pitch: 5.08 mm, Mounting: Wave soldering, Pin layout: Linear pinning, Solder pin [P]: 3.2 mm, Number of solder pins per potential: 1, Plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Orthogonal, Locking: without, Mounting method: without.
Features
- Well-known mounting principle allows worldwide use
- Can be combined with the MSTB 2,5 range
- Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Technical specifications
| Connection | solder connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | green | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 8 A | |
| Orientation | angled | |
| Pin number | 8 pole | |
| Grid | 5.08 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
