1925728 | Phoenix Contact
Socket header, 5 pole, pitch 5.08 mm, straight, green, 1925728
Unit Price (€ / pc.)
3.6533 € *
Available: 87 pcs.
Available in 10 days: 1,532 pcs.
Leadtime: 2 Weeks **
Male connectors with spring cage connection and click-and-lock flange, type Phoenix Contact COMBICON Control FKC2,5.
For conductor cross-sections up to 2.5 mm². Rugged insulated housing; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 630 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL, CB, VDE.
5.08 mm grid, type FKC2,5.

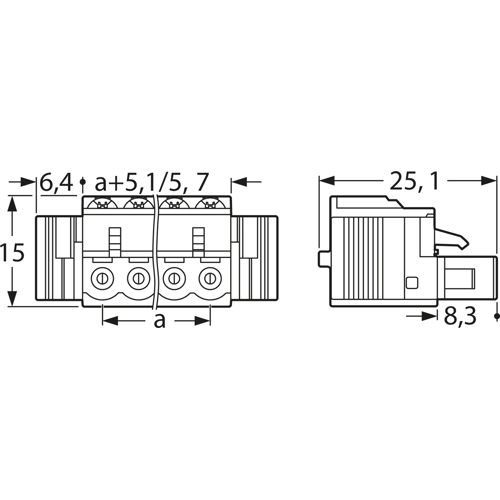

Technical attributes (type, number of poles, dimension a): FKC2,5/5-ST-5.08-RF, 5-pole, 20.32 mm
Technical specifications
| Connection | Leiterplattenanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | grün | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 320 V | |
| Rated current | 12 A | |
| Orientation | gerade | |
| Pin number | 5-polig | |
| Grid | 5.08 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
