1933192 | Phoenix Contact
Pin header, 3 pole, pitch 5 mm, straight, black, 1933192
Unit Price (€ / pc.)
0.4522 € *
Available: 2 pcs.
Available in 10 days: 33,455 pcs.
Leadtime: 1 Week **
Total Price:
0.45 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4522 €
10 pcs.
0.4165 €
50 pcs.
0.3689 €
100 pcs.
0.3332 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin headers and multipole connectors, type Phoenix Contact COMBICON compact.
Grid: 5.0 mm. Insulator: PA. Rated surge voltage: 4.0 kV. Inflammability class: UL 94 V-0. Certifications: UL, CUL.
Pin headers, type PST 1,3/..-5,0.
With solder pins 1.3 mm (for bore hole 1.5 mm); Rated voltage (overvoltage category/degree of soiling): 250 V (III/3), 320 V (III/2), 320 V (II/2), rated/load current: max. 12 A.

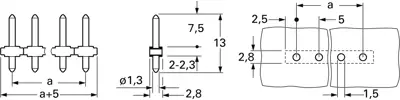

Technical attributes (type, number of poles, dimension a): PST 1.3/3-5.0, 3-pole, 10 mm
Technical specifications
| Anschluss | Lötanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 320 V | |
| Nennstrom | 12 A | |
| Orientierung | gerade | |
| Polzahl | 3-polig | |
| Rastermaß | 5 mm | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
