1934939 | Phoenix Contact
Socket header, 9 pole, pitch 5 mm, straight, green, 1934939
Unit Price (€ / pc.)
4.4625 € *
Available: 98 pcs.
Available in 10 days: 7,290 pcs.
Leadtime: 2 Weeks **
Total Price:
4.46 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4625 €
10 pcs.
4.1055 €
50 pcs.
3.7366 €
100 pcs.
3.3677 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin headers and multipole connectors, type Phoenix Contact COMBICON compact.
Grid: 5.0 mm. Insulator: PA. Rated surge voltage: 4.0 kV. Inflammability class: UL 94 V-0. Certifications: UL, CUL.
Multipole connectors, type PT 1,5/..-PVH-5,0.
Screw connections; Terminating capacity solid/flexible: 0.2 to 2.5 mm² (AWG 26 to 14). Stripping length: 5.0 mm. Thread: M 2.6. Tightening torque: 0.4 N/m. Rated voltage (overvoltage category/degree of soiling): 250 V (III/3), 320 V (III/2), 630 V (II/2), rated current (at conductor cross-section 1.5 mm²): 12 A, load current (with conductor cross-section 2.5 mm²): max. 12 A.

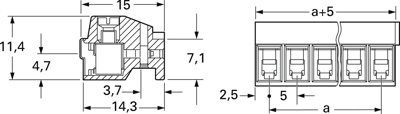

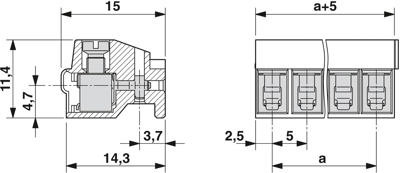

Technical attributes (type, number of poles, dimension a): PT 1,5/9-PVH-5,0, 9-pole, 40 mm
Technical specifications
| Connection | Schraubanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | grün | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 320 V | |
| Rated current | 12 A | |
| Orientation | gerade | |
| Pin number | 9-polig | |
| Grid | 5 mm | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
