1944903 | Phoenix Contact

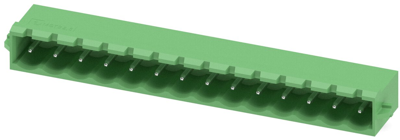

Pin header, 14 pole, pitch 5 mm, angled, green, 1944903
Unit Price (€ / pc.)
4.3554 € *
Available: 50 pcs.
Leadtime: 4 Weeks **
Total Price:
4.36 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3554 €
10 pcs.
4.0103 €
50 pcs.
3.6533 €
100 pcs.
3.2844 €
*incl. VAT plus shipping costs
**Subject to prior sale
Base housings with click-and-lock flange, type MSTBA2,5.
Horizontal conductor insertion; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 250 V (III/3/4.0 kV), 320 V (III/2/4.0 kV), 400 V (II/2/4.0 kV). Rated current (with conductor cross-section 2.5 mm²): 12 A. Approbations: UL, CUL, CB, VDE.
5.0 mm grid, type MSTBA2,5.
Technical attributes (type, number of poles, dimension a): MSTBA2,5/14-G-RN, 14-pole, 65 mm
Technical specifications
| Connection | Lötanschluss | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | grün | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 320 V | |
| Rated current | 12 A | |
| Orientation | abgewinkelt | |
| Pin number | 14-polig | |
| Grid | 5 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
