1952089 | Phoenix Contact

Socket header, 8 pole, pitch 3.5 mm, straight, green, 1952089

Order No.: 51F7312
EAN: 4017918942724
MPN:
1952089
FMC 1,5/8-ST-3,5-RF
Phoenix Contact
1952089 Phoenix Contact PCB Connection Systems Image 1
1952089 Phoenix Contact PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
8.0206 € *
Available: 38 pcs.
Available in 10 days: 640 pcs.
Leadtime: 2 Weeks **
Total Price:
8.02 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0206 €
10 pcs.
7.0567 €
50 pcs.
6.5450 €
150 pcs.
6.2713 €
500 pcs.
5.9619 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connectors with spring cage connection and click-and-lock flange, type Phoenix Contact COMBICON Control FMC1,5.

3.5 mm grid. For conductor size up to 1.5 mm². Rugged insulating housing; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 160 V (III/3/2.5 kV), 160 V (III/2/2.5 kV), 320 V (II/2/2.5 kV). Rated current (with conductor cross-section 1.5 mm²): 8.0 A. Approbations: UL, CUL.

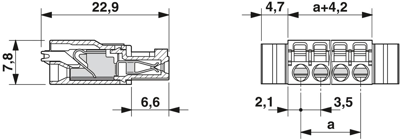

Technical attributes (type, number of poles, dimension a): FMC1,5/8-ST-3,5-RF, 8-pole, 24.5 mm

Technical specifications
Connection push-in spring connection
Connection plating tin-plated
Number of rows 1
Version socket header
Additional parts equipped
Colour green
Contact type socket
contact surface tin-plated
Rated voltage 160 V
Rated current 8 A
Orientation straight
Pin number 8 pole
Grid 3.5 mm
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
