1952144 | Phoenix Contact

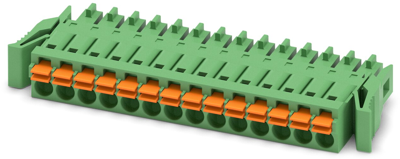

Socket header, 14 pole, pitch 3.5 mm, straight, green, 1952144
Order No.: 51F7324
EAN: 4017918942786
MPN:
1952144
FMC 1,5/14-ST-3,5-RF
Series: COMBICON Control FMC
Unit Price (€ / pc.)
11.3764 € *
Available: 98 pcs.
Leadtime: 3 Weeks **
Total Price:
11.38 € *
Price list
Quantity
Price per unit*
1 pcs.
11.3764 €
5 pcs.
10.4601 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connectors with spring cage connection and click-and-lock flange, type Phoenix Contact COMBICON Control FMC1,5.
3.5 mm grid. For conductor size up to 1.5 mm². Rugged insulating housing; Rated voltage (overvoltage category/degree of soiling/rated surge voltage): 160 V (III/3/2.5 kV), 160 V (III/2/2.5 kV), 320 V (II/2/2.5 kV). Rated current (with conductor cross-section 1.5 mm²): 8.0 A. Approbations: UL, CUL.

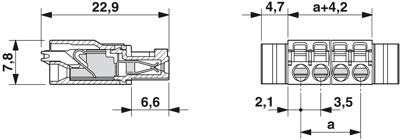

Technical attributes (type, number of poles, dimension a): FMC1,5/14-ST-3,5-RF, 14-pole, 45.5 mm
Technical specifications
| Anschluss | Push-in Federanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | grün | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 160 V | |
| Nennstrom | 8 A | |
| Orientierung | gerade | |
| Polzahl | 14-polig | |
| Rastermaß | 3.5 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
