1984125 | Phoenix Contact

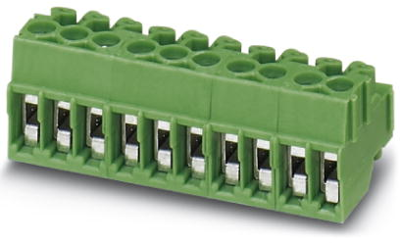

Socket header, 13 pole, pitch 3.5 mm, straight, green, 1984125
Unit Price (€ / pc.)
6.5331 € *
Available: 50 pcs.
Leadtime: 6 Weeks **
Total Price:
6.53 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5331 €
10 pcs.
6.0214 €
50 pcs.
5.4740 €
100 pcs.
4.9266 €
*incl. VAT plus shipping costs
**Subject to prior sale
Pin headers and multipole connectors, type Phoenix Contact COMBICON compact.
Grid: 3.5 mm. Insulator: PA. Rated surge voltage: 2.5 kV. Rated/load current: 8.0 A. Inflammability class: UL 94 V-0. Certifications: UL, CUL.
Multipole connectors, type PT 1,5/..-PVH-3,5.
Screw connections; Terminating capacity solid/flexible: 0.2 to 1.5 mm² (AWG 26 to 16). Stripping length: 5.0 mm. Thread: M 2, tightening torque: 0.25 N/m. Rated voltage (overvoltage category/degree of soiling): 160 V (III/3), 200 V (III/2), 400 V (II/2).

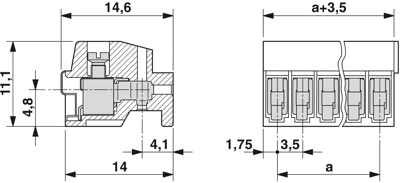

Technical attributes (type, number of poles, dimension a): PT 1,5/13-PVH-3,5, 13-pole, 42 mm
Technical specifications
| Connection | screw connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | green | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 200 V | |
| Rated current | 8 A | |
| Orientation | straight | |
| Pin number | 13 pole | |
| Grid | 3.5 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
