1071100 | Phoenix Contact

PCB terminal, 4 pole, pitch 5 mm, AWG 24-16, 16 A, push-in spring connection, green, 1071100

Order No.: 64P2514
EAN: 4063151101107
MPN:
1071100
SPTAF 1/ 4-5,0-IL-EXPROFINET 3
Series: SPTAF
1071100 Phoenix Contact PCB Terminal Blocks

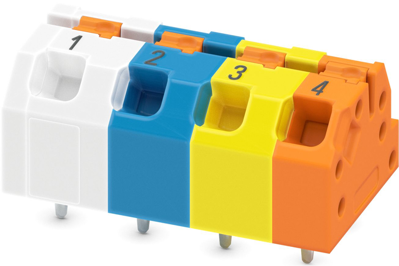

Image may differ
Unit Price (€ / pc.)
5.0932 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
5.09 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.0932 €

PCB terminal block, 1071100, Phoenix Contact

PCB terminal block, Nominal current: 16 A, Nominal cross section: 1.5 mm², Number of rows: 1, Number of positions per row: 4, Product range: SPTAF 1/.-IL-EX PROFINET, Pitch: 5 mm, Connection method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection direction: 45 °, Color: green, Pin layout: Linear pinning, Solder pin [P]: 2.6 mm, Number of solder pins per potential: 2. Suitable for CAT5

Technical specifications
Anschluss Push-in-Federanschluss
AWG-Leiterquerschnitt AWG 24-16
Breite 20 mm
Farbe grün
Höhe 10.6 mm
Leiterquerschnitt 0,2-1,5 mm²
Nennspannung 137 V
Nennstrom 16 A
Polzahl 4-polig
Rastermaß 5 mm
Tiefe 11 mm
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
