1190373 | Phoenix Contact

PCB terminal, 11 pole, pitch 5 mm, AWG 24-12, 24 A, push-in, green, 1190373

Order No.: 63P9493
EAN: 4063151239367
MPN:
1190373
LPTA 2,5/11-5,0
Series: LPTA
Phoenix Contact

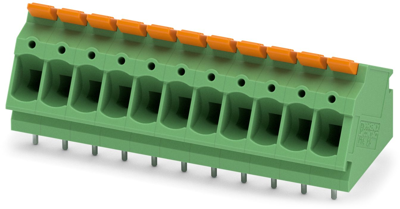

1190373 Phoenix Contact PCB Terminal Blocks
Image may differ
Unit Price (€ / pc.)
5.4145 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
5.41 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.4145 €

PCB terminal block, 1190373, Phoenix Contact

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm2, number of potentials: 11, number of rows: 1, number of positions per row: 11, product range: LPTA 2,5/, pitch: 5 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 30 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm.

Features

  • Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules
  • Clear lever positions provide reliable feedback on opened or closed clamping spaces
  • Defined contact force ensures that contact remains stable over the long term
  • Time-saving push-in connection when lever is closed
  • Intuitive operation, thanks to a color-coded actuation lever
Technical specifications
Connection push-in
AWG cross-section AWG 24-12
Width 56.5 mm
Colour green
Height 23.78 mm
Cable cross-section 0.2-4.0 mm²
Rated voltage 400 V
Rated current 24 A
Pin number 11 pole
Grid 5 mm
Depth 21.35 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
