1548365 | Phoenix Contact

PCB terminal, 2 pole, pitch 5 mm, AWG 24-16, 16 A, push-in spring connection, orange, 1548365

Order No.: 45F1012
EAN: 4067923022973
MPN:
1548365
SPTAF 1/ 2-5,0-IL SPE
Series: SPTAF
Phoenix Contact

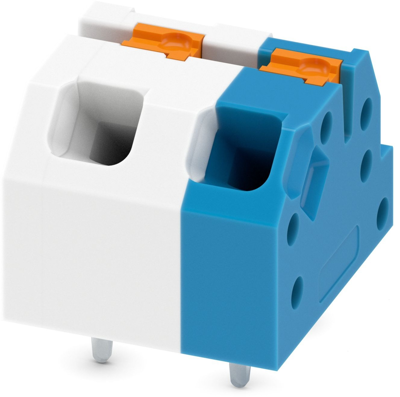

1548365 Phoenix Contact PCB Terminal Blocks
Image may differ
Unit Price (€ / pc.)
0.6902 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
0.69 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.6902 €

PCB terminal block, 1548365, Phoenix Contact

PCB terminal block, nominal current: 16 A, rated voltage (III/2): 320 V, nominal cross section: 1.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: SPTAF 1/..-IL, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: multicolored, Pin layout: Linear pinning, Solder pin [P]: 2.6 mm, number of solder pins per potential: 2, type of packaging: Tray.

Features

  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Intuitive operation due to color-coded actuating push button
  • Small component size for applications where space is at a premium
  • Quick and convenient testing using integrated test option
Technical specifications
Connection push-in spring connection
AWG cross-section AWG 24-16
Width 10 mm
Colour orange
Height 10.6 mm
Cable cross-section 1.5 mm²
Rated voltage 320 V
Rated current 16 A
Pin number 2 pole
Grid 5 mm
Depth 11 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
