1701626 | Phoenix Contact

PCB terminal, 9 pole, pitch 5.08 mm, AWG 26-14, 20 A, screw connection, green, 1701626

Order No.: 63P8861
EAN: 4046356592116
MPN:
1701626
SMKDS 2,5/ 9-5,08
Series: SMKDS

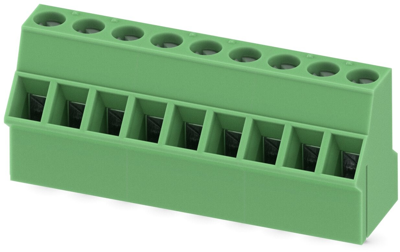

1701626 Phoenix Contact PCB Terminal Blocks
Image may differ
Unit Price (€ / pc.)
4.8195 € *
Available: 0 pcs.
Available in 10 days: 197 pcs.
Leadtime: 1 Week **
Total Price:
4.82 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.8195 €

PCB terminal, 1701626, Phoenix Contact

PCB terminal block, nominal current: 20 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 9, number of rows: 1, number of positions per row: 9, pitch: 5.08 mm, connection method: screw connection with tension sleeve, conductor/PCB connection direction: 50 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Angled connection enables multi-row arrangement on the PCB
  • Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Anschluss Schraubanschluss
AWG-Leiterquerschnitt AWG 26-14
Breite 45.72 mm
Farbe grün
Höhe 23.5 mm
Leiterquerschnitt 0,14-2,5 mm²
Nennspannung 400 V
Nennstrom 20 A
Polzahl 9-polig
Rastermaß 5.08 mm
Logistics
Ursprungsland PL
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
