1703034 | Phoenix Contact

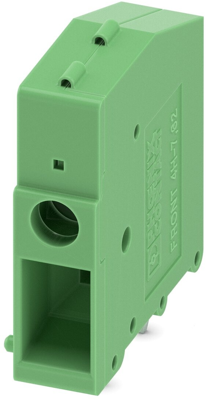

PCB terminal, 1 pole, pitch 7.62 mm, AWG 20-10, 32 A, screw connection, green, 1703034
Unit Price (€ / pc.)
3.1178 € *
Available: 0 pcs.
Available in 10 days: 16,850 pcs.
Leadtime: 1 Week **
Total Price:
3.12 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1178 €
10 pcs.
2.8679 €
50 pcs.
2.6061 €
100 pcs.
2.3562 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1703034, Phoenix Contact

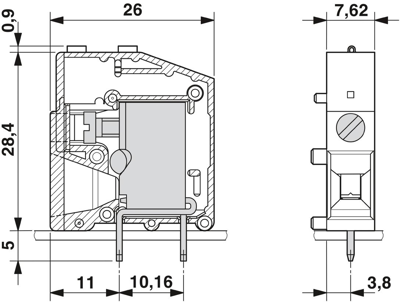

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, pitch: 7.62 mm, connection method: front screw connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5 mm, number of solder pins per potential: 2.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Operation and conductor connection from one direction enable integration into front of device
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 20-10 | |
| Width | 7.62 mm | |
| Colour | green | |
| Height | 34.4 mm | |
| Cable cross-section | 0.5-6.0 mm² | |
| Rated voltage | 630 V | |
| Rated current | 32 A | |
| Pin number | 1 pole | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | BG |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
