1703063 | Phoenix Contact

PCB terminal, 1 pole, pitch 6.35 mm, AWG 20-10, 32 A, screw connection, green, 1703063

Order No.: 62P9955
EAN: 4017918023089
MPN:
1703063
FRONT 4-V-6,35
Series: FRONT

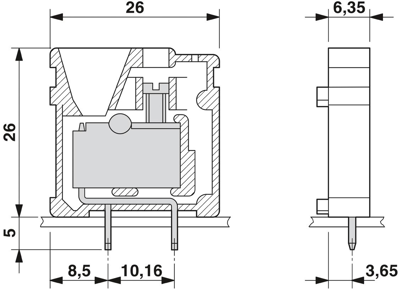

1703063 Phoenix Contact PCB Terminal Blocks Image 1

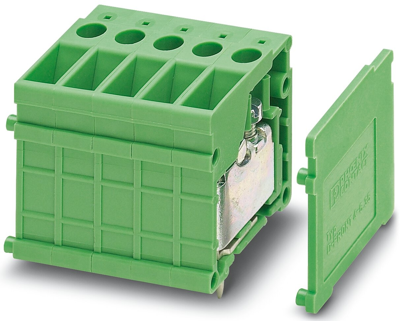

1703063 Phoenix Contact PCB Terminal Blocks Image 2

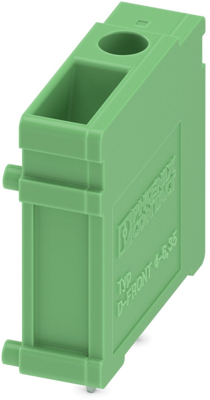

1703063 Phoenix Contact PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
3.1178 € *
Available: 0 pcs.
Available in 10 days: 9,550 pcs.
Leadtime: 1 Week **
Total Price:
3.12 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1178 €
10 pcs.
2.8679 €
50 pcs.
2.6061 €
100 pcs.
2.3562 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1703063, Phoenix Contact

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 320 V, nominal cross section: 4 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, pitch: 6.35 mm, connection method: front screw connection, conductor/PCB connection direction: 90 °, color: green, pin layout: linear pinning, solder pin: 5 mm, number of solder pins per potential: 2.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Operation and conductor connection from one direction enable integration into front of device
Technical specifications
Anschluss Schraubanschluss
AWG-Leiterquerschnitt AWG 20-10
Breite 7.62 mm
Farbe grün
Höhe 32 mm
Leiterquerschnitt 0,5-6,0 mm²
Nennspannung 320 V
Nennstrom 32 A
Polzahl 1-polig
Rastermaß 6.35 mm
Logistics
Ursprungsland BG
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
