1703083 | Phoenix Contact

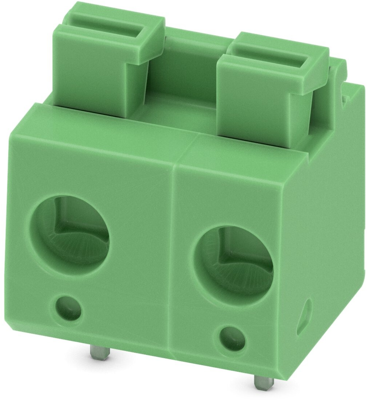

PCB terminal, 2 pole, pitch 7.5 mm, AWG 26-14, 16 A, spring-clamp connection, green, 1703083
Unit Price (€ / pc.)
1.1067 € *
Available: 0 pcs.
Available in 10 days: 172 pcs.
Leadtime: 1 Week **
Total Price:
1.11 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1067 €
10 pcs.
0.9877 €
100 pcs.
0.8449 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1703083, Phoenix Contact
PCB terminal block, nominal current: 16 A, rated voltage (III/2): 630 V, nominal cross section: 1.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 7.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 2.5 mm, number of solder pins per potential: 1.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Finger-operated release button for very convenient operation
- Quick and convenient testing using integrated test option

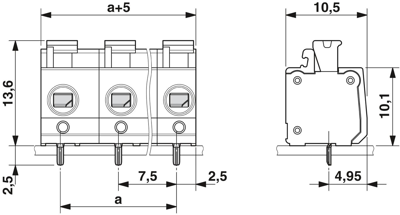

Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 26-14 | |
| Width | 12.5 mm | |
| Colour | green | |
| Height | 16.1 mm | |
| Cable cross-section | 0.14-2.5 mm² | |
| Rated voltage | 630 V | |
| Rated current | 16 A | |
| Pin number | 2 pole | |
| Grid | 7.5 mm |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
