1703212 | Phoenix Contact

PCB terminal, 4 pole, pitch 7.62 mm, AWG 20-10, 32 A, screw connection, green, 1703212

Order No.: 62P9950
EAN: 4017918329730
MPN:
1703212
FRONT 4-H-7,62-4
Series: FRONT

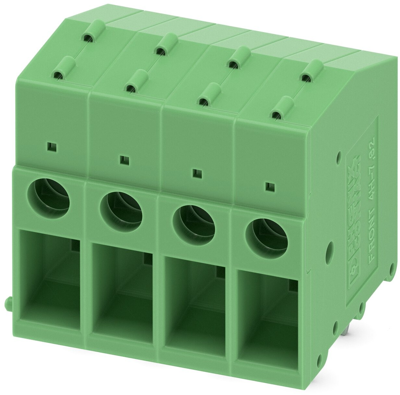

1703212 Phoenix Contact PCB Terminal Blocks
Image may differ
Unit Price (€ / pc.)
11.9833 € *
Available: 0 pcs.
Available in 10 days: 1,849 pcs.
Leadtime: 1 Week **
Total Price:
11.98 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9833 €
10 pcs.
11.0194 €
50 pcs.
10.0317 €
100 pcs.
9.0321 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1703212, Phoenix Contact

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 7.62 mm, connection method: front screw connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 5 mm, number of solder pins per potential: 2.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Operation and conductor connection from one direction enable integration into front of device
Technical specifications
Anschluss Schraubanschluss
AWG-Leiterquerschnitt AWG 20-10
Breite 30.48 mm
Farbe grün
Höhe 34.4 mm
Leiterquerschnitt 0,5-6,0 mm²
Nennspannung 630 V
Nennstrom 32 A
Polzahl 4-polig
Rastermaß 7.62 mm
Logistics
Ursprungsland BG
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
