1703225 | Phoenix Contact

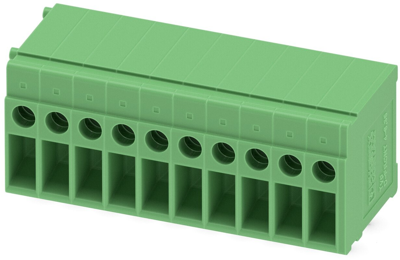

PCB terminal, 10 pole, pitch 6.35 mm, AWG 20-10, 32 A, screw connection, green, 1703225
Unit Price (€ / pc.)
21.3962 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
PCB terminal, 1703225, Phoenix Contact
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 320 V, nominal cross section: 4 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, pitch: 6.35 mm, connection method: front screw connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 5 mm, number of solder pins per potential: 2.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Operation and conductor connection from one direction enable integration into front of device
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 20-10 | |
| Width | 65.1 mm | |
| Colour | green | |
| Height | 33 mm | |
| Cable cross-section | 0.5-6.0 mm² | |
| Rated voltage | 320 V | |
| Rated current | 32 A | |
| Pin number | 10 pole | |
| Grid | 6.35 mm |
Download
Logistics
| Country of origin | BG |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
