1704836 | Phoenix Contact
PCB terminal, 1 pole, 2.5-6.0 mm², 41 A, spring-clamp connection, gray, 1704836
Unit Price (€ / pc.)
1.1543 € *
Available: 0 pcs.
Available in 10 days: 32,121 pcs.
Leadtime: 1 Week **

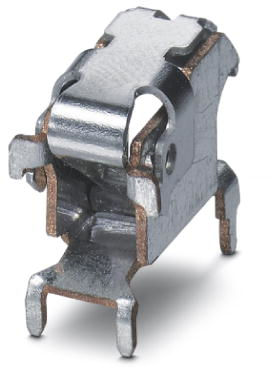

PCB terminal, 1704836, Phoenix Contact
PCB terminal block for tin-plated stranded cables, nominal current: 41 A, 1-pos., connection method: spring-cage connection, mounting: THT/THR.
Features
- Able to perform without insulating elements: ideal for easy integration into the SMT soldering process
- Tool-free spring principle enables time-saving connection of conductors with ferrules and tinned conductors
- Defined contact force ensures that contact remains stable over the long term

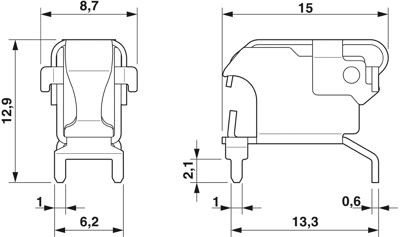

Technical specifications
| Anschluss | Federklemmanschluss | |
| Breite | 8.7 mm | |
| Farbe | grau | |
| Höhe | 1.9 mm | |
| Leiterquerschnitt | 2,5-6,0 mm² | |
| Nennstrom | 41 A | |
| Polzahl | 1-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
