1704936 | Phoenix Contact
PCB terminal, 3 pole, pitch 7.62 mm, AWG 24-10, 32 A, screw connection, green, 1704936
Unit Price (€ / pc.)
2.5347 € *
Available: 0 pcs.
Available in 10 days: 4,400 pcs.
Leadtime: 1 Week **
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
10 pcs.
2.3324 €
50 pcs.
2.1182 €
100 pcs.
1.9040 €
*incl. VAT plus shipping costs
**Subject to prior sale

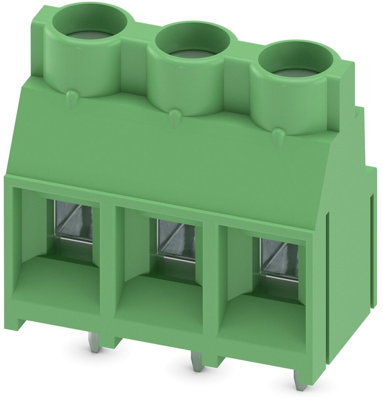

PCB terminal, 1704936, Phoenix Contact
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5.1 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- The latching on the side enables various numbers of positions to be combined

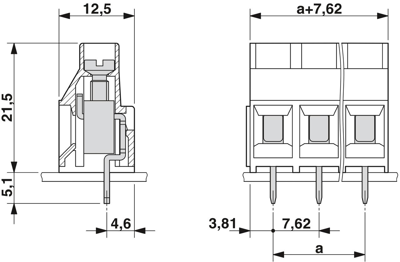

Technical specifications
| Anschluss | Schraubanschluss | |
| AWG-Leiterquerschnitt | AWG 24-10 | |
| Breite | 22.86 mm | |
| Farbe | grün | |
| Höhe | 26.6 mm | |
| Leiterquerschnitt | 0,2-6,0 mm² | |
| Nennspannung | 630 V | |
| Nennstrom | 32 A | |
| Polzahl | 3-polig | |
| Rastermaß | 7.62 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
