1706170 | Phoenix Contact

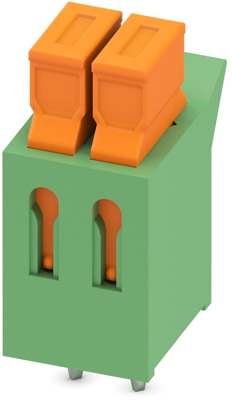

PCB terminal, 2 pole, pitch 3.81 mm, AWG 26-22, 5 A, cutting connection, green, 1706170
Unit Price (€ / pc.)
0.7973 € *
Available: 0 pcs.
Available in 10 days: 250 pcs.
Leadtime: 2 Weeks **
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7973 €
10 pcs.
0.7259 €
50 pcs.
0.6664 €
100 pcs.
0.5950 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1706170, Phoenix Contact
PCB terminal block, nominal current: 5 A, rated voltage (III/2): 160 V, nominal cross section: 0.34 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 3.81 mm, connection method: displacement connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.4 mm, number of solder pins per potential: 1.
Features
- Connection without conductor pretreatment for huge time savings
- Intuitive use through colour coded actuation lever

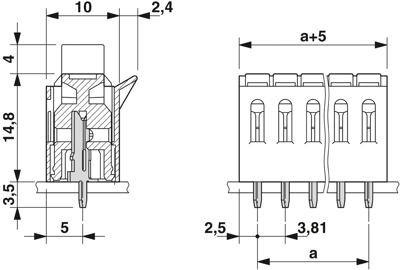

Technical specifications
| Connection | Schneidanschluss | |
| AWG cross-section | AWG 26-22 | |
| Width | 8.81 mm | |
| Colour | grün | |
| Height | 22.2 mm | |
| Cable cross-section | 0,13-0,34 mm² | |
| Rated voltage | 160 V | |
| Rated current | 5 A | |
| Pin number | 2-polig | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
