1706714 | Phoenix Contact

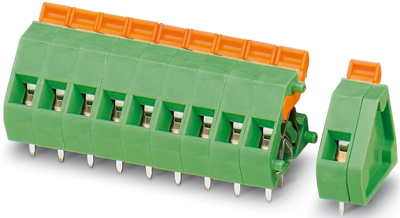

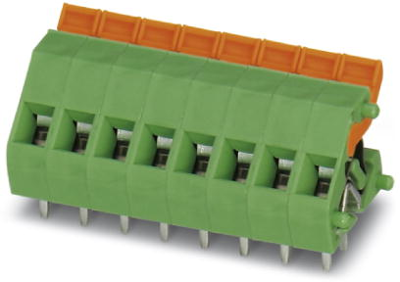

PCB terminal, 1 pole, pitch 5.08 mm, AWG 24-14, 16 A, spring-clamp connection, green, 1706714
Unit Price (€ / pc.)
0.7021 € *
Available: 0 pcs.
Available in 10 days: 2,250 pcs.
Leadtime: 2 Weeks **
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7021 €
10 pcs.
0.6069 €
100 pcs.
0.5236 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1706714, Phoenix Contact

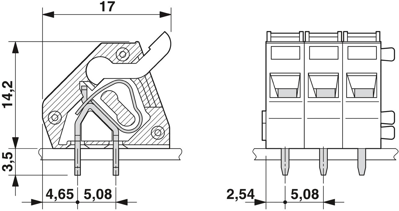

PCB terminal block, nominal current: 16 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, pitch: 5.08 mm, connection method: spring-cage connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.
Features
- Defined contact force ensures that contact remains stable over the long term
- Angled connection enables multi-row arrangement on the PCB
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | Federklemmanschluss | |
| AWG cross-section | AWG 24-14 | |
| Width | 5.08 mm | |
| Colour | grün | |
| Height | 16 mm | |
| Cable cross-section | 0,2-2,5 mm² | |
| Rated voltage | 400 V | |
| Rated current | 16 A | |
| Pin number | 1-polig | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | GR |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
