1706756 | Phoenix Contact

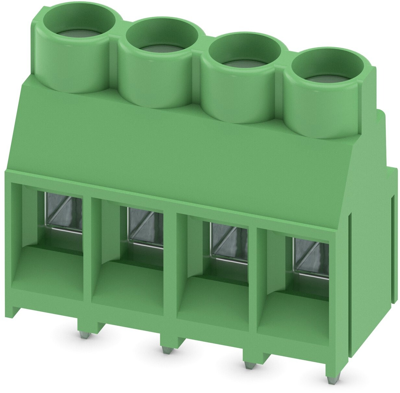

PCB terminal, 4 pole, pitch 6.35 mm, AWG 24-10, 32 A, screw connection, green, 1706756
Unit Price (€ / pc.)
3.4391 € *
Available: 78 pcs.
Available in 10 days: 1,100 pcs.
Leadtime: 2 Weeks **
Total Price:
3.44 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4391 €
10 pcs.
3.1654 €
50 pcs.
2.8798 €
100 pcs.
2.5823 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1706756, Phoenix Contact
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 6.35 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5.1 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | Schraubanschluss | |
| AWG cross-section | AWG 24-10 | |
| Width | 25.4 mm | |
| Colour | grün | |
| Height | 26.6 mm | |
| Cable cross-section | 0,2-6,0 mm² | |
| Rated voltage | 630 V | |
| Rated current | 32 A | |
| Pin number | 4-polig | |
| Grid | 6.35 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
