1706927 | Phoenix Contact
PCB terminal, 10 pole, pitch 2.5 mm, AWG 24-20, 2 A, spring-clamp connection, green, 1706927
Unit Price (€ / pc.)
1.9397 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

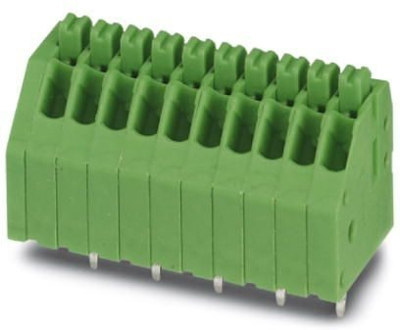

PCB terminal, 1706927, Phoenix Contact
PCB terminal block, nominal current: 2 A, rated voltage (III/2): 250 V, nominal cross section: 0.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, pitch: 2.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: Zigzag pinning W, solder pin: 3.6 mm, number of solder pins per potential: 1.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Angled connection enables multi-row arrangement on the PCB
Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 24-20 | |
| Width | 26.5 mm | |
| Colour | green | |
| Height | 16.7 mm | |
| Cable cross-section | 0.14-2.5 mm² | |
| Rated voltage | 250 V | |
| Rated current | 2 A | |
| Pin number | 10 pole | |
| Grid | 2.5 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
