1722545 | Phoenix Contact
PCB terminal, 2 pole, pitch 10 mm, AWG 24-10, 32 A, spring-clamp connection, green, 1722545
Unit Price (€ / pc.)
2.3919 € *
Available: 0 pcs.
Available in 10 days: 950 pcs.
Leadtime: 1 Week **
Total Price:
2.39 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3919 €
10 pcs.
2.2015 €
50 pcs.
1.9992 €
100 pcs.
1.7969 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1722545, Phoenix Contact

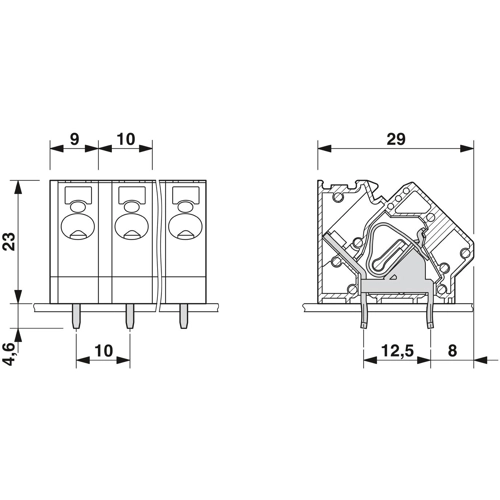

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 10 mm, connection method: spring-cage connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear pinning, solder pin: 4.6 mm, number of solder pins per potential: 2.
Features
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Separate bridge shaft for easily connecting multiple positions to jumpers
- Quick and convenient testing using integrated test option
Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 24-10 | |
| Width | 21.5 mm | |
| Colour | green | |
| Height | 27.6 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated voltage | 630 V | |
| Rated current | 32 A | |
| Pin number | 2 pole | |
| Grid | 10 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
