1723353 | Phoenix Contact

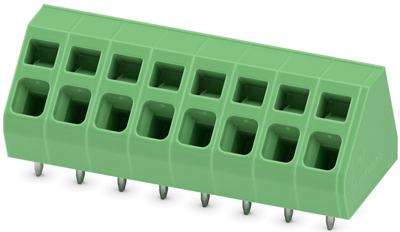

PCB terminal, 8 pole, pitch 5.08 mm, AWG 26-16, 24 A, spring-clamp connection, green, 1723353
Unit Price (€ / pc.)
3.4391 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
3.44 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4391 €
10 pcs.
3.1654 €
50 pcs.
2.8798 €
100 pcs.
2.5942 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1723353, Phoenix Contact
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 8, number of rows: 1, number of positions per row: 8, pitch: 5.08 mm, connection method: spring-cage connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear double pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.
Features
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Angled connection enables multi-row arrangement on the PCB
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 26-16 | |
| Breite | 41.64 mm | |
| Farbe | grün | |
| Höhe | 17.5 mm | |
| Leiterquerschnitt | 0,2-4,0 mm² | |
| Nennspannung | 400 V | |
| Nennstrom | 24 A | |
| Polzahl | 8-polig | |
| Rastermaß | 5.08 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
