1725041 | Phoenix Contact
PCB terminal, 6 pole, pitch 5.08 mm, AWG 26-14, 17.5 A, screw connection, green, 1725041
Unit Price (€ / pc.)
2.5942 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

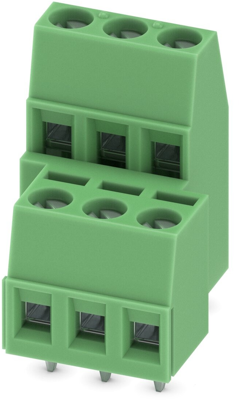

PCB terminal, 1725041, Phoenix Contact
PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 6, number of rows: 2, number of positions per row: 3, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Conductor connection on several levels enables higher contact density
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Anschluss | Schraubanschluss | |
| AWG-Leiterquerschnitt | AWG 26-14 | |
| Breite | 17.78 mm | |
| Farbe | grün | |
| Höhe | 29.5 mm | |
| Leiterquerschnitt | 0,14-2,5 mm² | |
| Nennspannung | 400 V | |
| Nennstrom | 17.5 A | |
| Polzahl | 6-polig | |
| Rastermaß | 5.08 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
