1725341 | Phoenix Contact
PCB terminal, 5 pole, pitch 5 mm, AWG 24-14, 24 A, spring-clamp connection, green, 1725341
Unit Price (€ / pc.)
3.4629 € *
Available: 0 pcs.
Available in 10 days: 9,350 pcs.
Leadtime: 2 Weeks **
Total Price:
3.46 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4629 €
10 pcs.
3.1892 €
50 pcs.
2.8917 €
100 pcs.
2.6061 €
*incl. VAT plus shipping costs
**Subject to prior sale

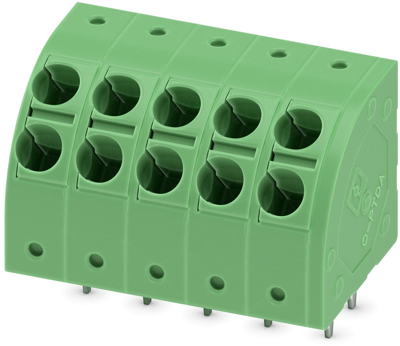

PCB terminal, 1725341, Phoenix Contact

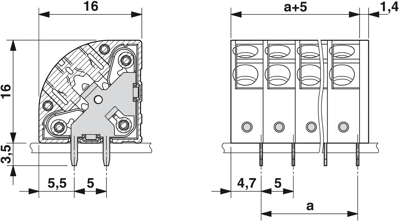

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, pitch: 5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear double pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Potentials can be easily looped through with additional connection to the PCB
- Quick and convenient testing using integrated test option
- Two solder pins reduce the mechanical strain on the soldering spots
Technical specifications
| Connection | Federklemmanschluss | |
| AWG cross-section | AWG 24-14 | |
| Width | 25 mm | |
| Colour | grün | |
| Height | 19.5 mm | |
| Cable cross-section | 0,2-2,5 mm² | |
| Rated voltage | 400 V | |
| Rated current | 24 A | |
| Pin number | 5-polig | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
