1727256 | Phoenix Contact
PCB terminal, 4 pole, pitch 3.81 mm, AWG 26-16, 8 A, screw connection, black, 1727256
Unit Price (€ / pc.)
3.8437 € *
Available: 0 pcs.
Available in 10 days: 1,932 pcs.
Leadtime: 2 Weeks **
Total Price:
3.84 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8437 €
10 pcs.
3.4629 €
100 pcs.
2.9393 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1727256, Phoenix Contact
PCB terminal block, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 3.81 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: black, pin layout: linear pad geometry, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
- Designed for integration into the SMT soldering process

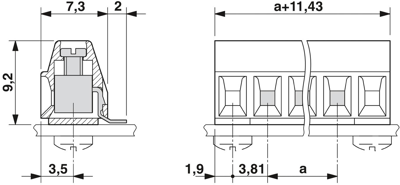

Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 26-16 | |
| Width | 15.23 mm | |
| Colour | black | |
| Height | 9.2 mm | |
| Cable cross-section | 0.14-1.5 mm² | |
| Rated voltage | 160 V | |
| Rated current | 8 A | |
| Pin number | 4 pole | |
| Grid | 3.81 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
