1729212 | Phoenix Contact
PCB terminal, 11 pole, pitch 5.08 mm, AWG 26-16, 13.5 A, screw connection, green, 1729212
Unit Price (€ / pc.)
4.7362 € *
Available: 0 pcs.
Available in 10 days: 400 pcs.
Leadtime: 2 Weeks **
Total Price:
4.74 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7362 €
10 pcs.
4.3554 €
50 pcs.
3.9627 €
100 pcs.
3.5700 €
*incl. VAT plus shipping costs
**Subject to prior sale

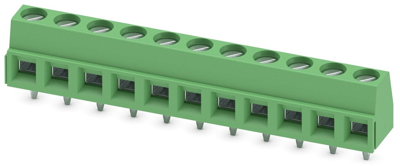

PCB terminal, 1729212, Phoenix Contact

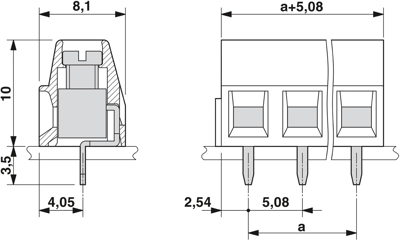

PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 11, number of rows: 1, number of positions per row: 11, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Connection | Schraubanschluss | |
| AWG cross-section | AWG 26-16 | |
| Width | 55.88 mm | |
| Colour | grün | |
| Height | 13.5 mm | |
| Cable cross-section | 0,14-1,5 mm² | |
| Rated voltage | 400 V | |
| Rated current | 13.5 A | |
| Pin number | 11-polig | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
