1730146 | Phoenix Contact

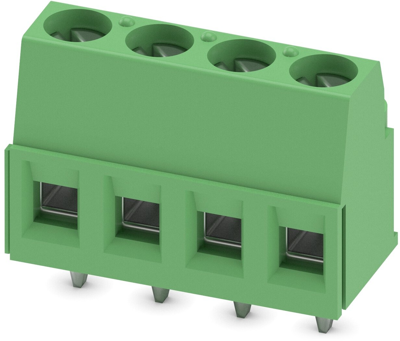

PCB terminal, 4 pole, pitch 5.08 mm, AWG 26-14, 17.5 A, screw connection, green, 1730146
Unit Price (€ / pc.)
2.1182 € *
Available: 0 pcs.
Available in 10 days: 2,150 pcs.
Leadtime: 1 Week **
Total Price:
2.12 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1182 €
10 pcs.
1.9516 €
50 pcs.
1.7731 €
100 pcs.
1.5946 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1730146, Phoenix Contact
PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Quick and convenient testing using integrated test option
- The latching on the side enables various numbers of positions to be combined

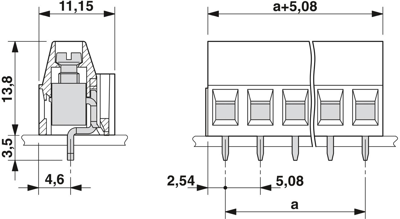

Technical specifications
| Anschluss | Schraubanschluss | |
| AWG-Leiterquerschnitt | AWG 26-14 | |
| Breite | 20.32 mm | |
| Farbe | grün | |
| Höhe | 17.3 mm | |
| Leiterquerschnitt | 0,14-2,5 mm² | |
| Nennspannung | 400 V | |
| Nennstrom | 17.5 A | |
| Polzahl | 4-polig | |
| Rastermaß | 5.08 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
