1731734 | Phoenix Contact

PCB terminal, 3 pole, pitch 7.62 mm, AWG 24-12, 24 A, screw connection, green, 1731734

Order No.: 63P0358
EAN: 4017918026417
MPN:
1731734
GMKDS 3/ 3-7,62
Series: GMKDS

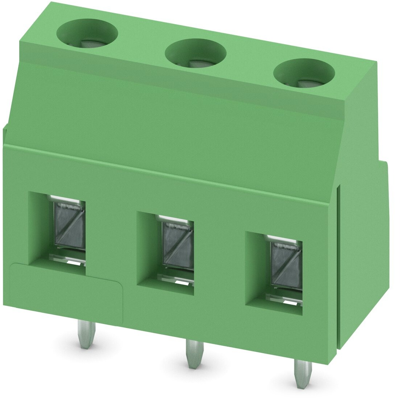

1731734 Phoenix Contact PCB Terminal Blocks Image 1

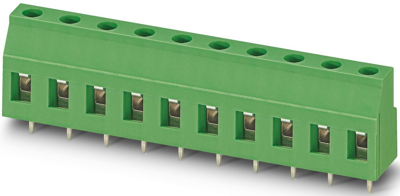

1731734 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.9754 € *
Available: 80 pcs.
Available in 10 days: 1,348 pcs.
Leadtime: 1 Week **
Total Price:
1.98 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.9754 €

PCB terminal, 1731734, Phoenix Contact

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 630 V, nominal cross section: 2.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, pitch: 7.62 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Larger pitch for increased voltage requirements
  • Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve
  • The latching on the side enables various numbers of positions to be combined
Technical specifications
Anschluss Schraubanschluss
AWG-Leiterquerschnitt AWG 24-12
Breite 22.86 mm
Farbe grün
Höhe 23 mm
Leiterquerschnitt 0,2-4,0 mm²
Nennspannung 630 V
Nennstrom 24 A
Polzahl 3-polig
Rastermaß 7.62 mm
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
