1731828 | Phoenix Contact
PCB terminal, 2 pole, pitch 5.08 mm, AWG 26-16, 13.5 A, screw connection, green, 1731828
Unit Price (€ / pc.)
0.9639 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Total Price:
0.96 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9639 €
10 pcs.
0.8925 €
50 pcs.
0.8211 €
100 pcs.
0.7259 €
*incl. VAT plus shipping costs
**Subject to prior sale

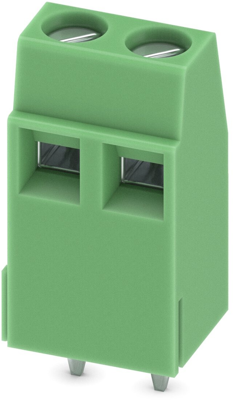

PCB terminal, 1731828, Phoenix Contact
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 5.08 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
- Conductor connection on several levels enables higher contact density

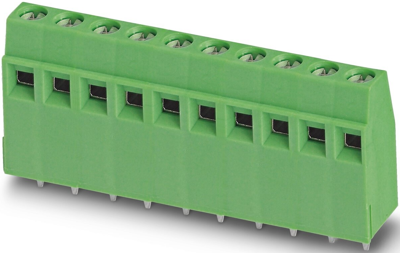

- The latching on the side enables various numbers of positions to be combined

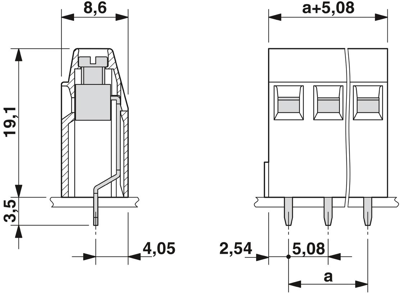

Technical specifications
| Connection | Schraubanschluss | |
| AWG cross-section | AWG 26-16 | |
| Width | 10.16 mm | |
| Colour | grün | |
| Height | 22.6 mm | |
| Cable cross-section | 0,2-4,0 mm² | |
| Rated voltage | 400 V | |
| Rated current | 13.5 A | |
| Pin number | 2-polig | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
