1735781 | Phoenix Contact

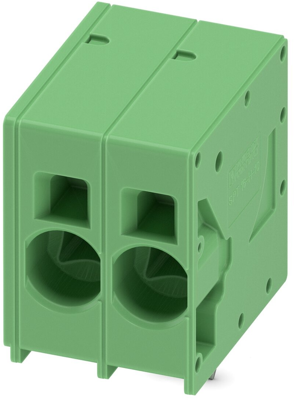

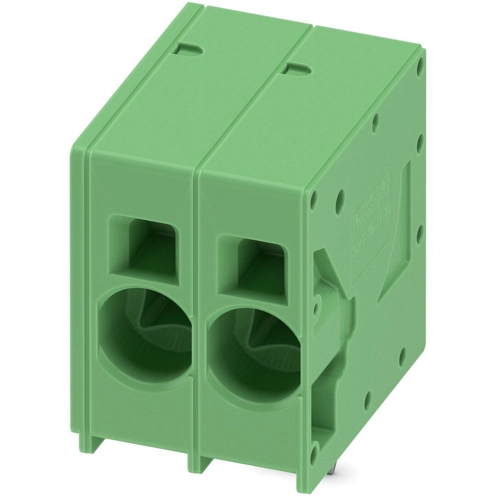

PCB terminal, 2 pole, pitch 10 mm, AWG 20-4, 76 A, spring-clamp connection, green, 1735781
Unit Price (€ / pc.)
4.4863 € *
Available: 0 pcs.
Available in 10 days: 61 pcs.
Leadtime: 1 Week **
PCB terminal, 1735781, Phoenix Contact
PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², number of potentials: 2, number of rows: 1, number of positions per row: 2, pitch: 10 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: green, pin layout: Zigzag pinning W, solder pin: 4 mm, number of solder pins per potential: 3.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Clamping space opened by means of fixed screwdriver enables convenient conductor connection
- Operation and conductor connection from one direction enable integration into front of device

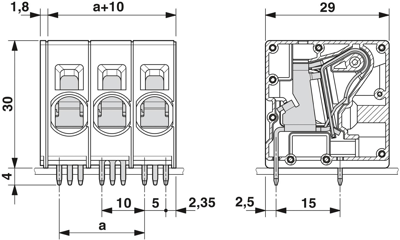

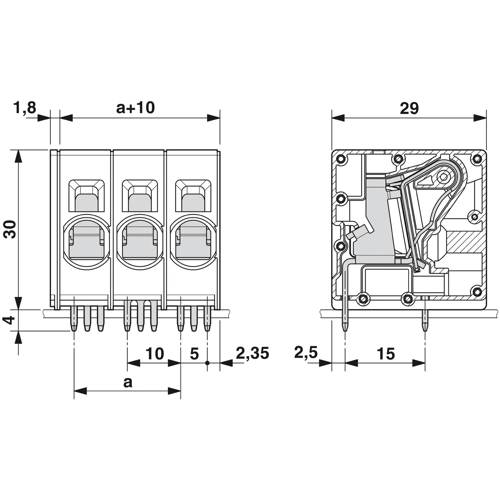

Technical specifications
| Anschluss | Federklemmanschluss | |
| AWG-Leiterquerschnitt | AWG 20-4 | |
| Breite | 21.8 mm | |
| Farbe | grün | |
| Höhe | 34 mm | |
| Leiterquerschnitt | 0,75-16 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 76 A | |
| Polzahl | 2-polig | |
| Rastermaß | 10 mm |
Download
Logistics
| Ursprungsland | BG |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
