1744109 | Phoenix Contact
PCB terminal, 9 pole, pitch 5 mm, AWG 24-14, 24 A, screw connection, green, 1744109
Unit Price (€ / pc.)
9.1273 € *
Available: 0 pcs.
Available in 10 days: 60 pcs.
Leadtime: 1 Week **
PCB terminal, 1744109, Phoenix Contact

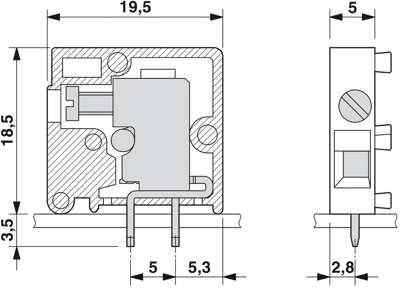

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 9, number of rows: 1, number of positions per row: 9, pitch: 5 mm, connection method: front screw connection, conductor/PCB connection direction: 0 °, color: green, pin layout: linear double pinning, solder pin: 3.5 mm, number of solder pins per potential: 2.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Operation and conductor connection from one direction enable integration into front of device
- Two solder pins reduce the mechanical strain on the soldering spots
- The latching on the side enables various numbers of positions to be combined
Technical specifications
| Anschluss | Schraubanschluss | |
| AWG-Leiterquerschnitt | AWG 24-14 | |
| Breite | 47.5 mm | |
| Farbe | grün | |
| Höhe | 22.1 mm | |
| Leiterquerschnitt | 0,2-2,5 mm² | |
| Nennspannung | 400 V | |
| Nennstrom | 24 A | |
| Polzahl | 9-polig | |
| Rastermaß | 5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
