1751206 | Phoenix Contact

PCB terminal, 13 pole, pitch 3.5 mm, AWG 26-16, 10 A, screw connection, green, 1751206

Order No.: 63P8839
EAN: 4017918103804
MPN:
1751206
SMKDS 1/13-3,5
Series: SMKDS

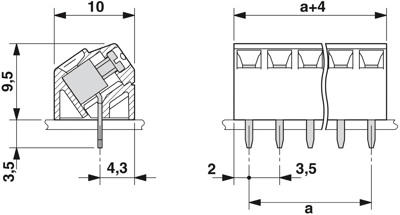

1751206 Phoenix Contact PCB Terminal Blocks Image 1

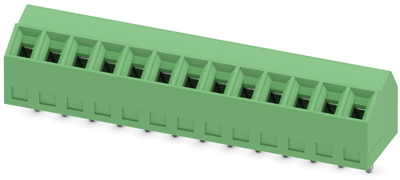

1751206 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
4.6172 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.6172 €

PCB terminal, 1751206, Phoenix Contact

PCB terminal block, nominal current: 10 A, rated voltage (III/2): 200 V, nominal cross section: 1 mm², number of potentials: 13, number of rows: 1, number of positions per row: 13, pitch: 3.5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 35 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.

Features

  • Low temperature rise, thanks to maximum contact force
  • Allows connection of two conductors
  • Angled connection enables multi-row arrangement on the PCB
  • Extremely small design for the respective conductor cross section
Technical specifications
Connection screw connection
AWG cross-section AWG 26-16
Width 46 mm
Colour green
Height 13 mm
Cable cross-section 0.14-1.5 mm²
Rated voltage 200 V
Rated current 10 A
Pin number 13 pole
Grid 3.5 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
