1751442 | Phoenix Contact

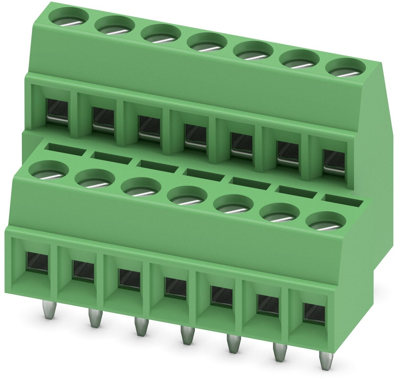

PCB terminal, 14 pole, pitch 3.5 mm, AWG 26-16, 8 A, screw connection, green, 1751442
Unit Price (€ / pc.)
5.4145 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
PCB terminal, 1751442, Phoenix Contact
PCB terminal block, nominal current: 8 A, rated voltage (III/2): 200 V, nominal cross section: 1 mm², number of potentials: 14, number of rows: 2, number of positions per row: 7, pitch: 3.5 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors
- Extremely small design for the respective conductor cross section
- Conductor connection on several levels enables higher contact density

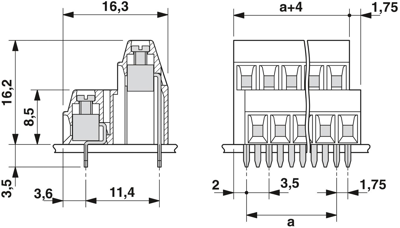

Technical specifications
| Anschluss | Schraubanschluss | |
| AWG-Leiterquerschnitt | AWG 26-16 | |
| Breite | 26.75 mm | |
| Farbe | grün | |
| Höhe | 19.7 mm | |
| Leiterquerschnitt | 0,14-1,5 mm² | |
| Nennspannung | 200 V | |
| Nennstrom | 8 A | |
| Polzahl | 14-polig | |
| Rastermaß | 3.5 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
