1751503 | Phoenix Contact

PCB terminal, 5 pole, pitch 3.81 mm, AWG 24-16, 9 A, spring-clamp connection, green, 1751503

Order No.: 63P9510
EAN: 4046356318044
MPN:
1751503
SPTA 1,5/ 5-3,81
Series: SPTA
Phoenix Contact

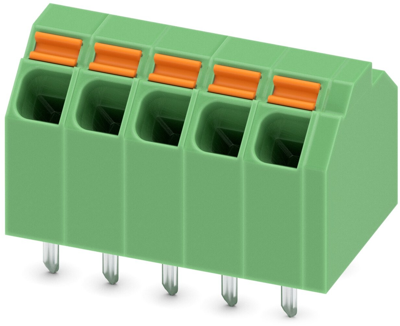

1751503 Phoenix Contact PCB Terminal Blocks Image 1
1751503 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.6180 € *
Available: 50 pcs.
Leadtime: 9 Weeks **
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6180 €
10 pcs.
2.4038 €
50 pcs.
2.1896 €
100 pcs.
1.9754 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 1751503, Phoenix Contact

PCB terminal block, nominal current: 9 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of potentials: 5, number of rows: 1, number of positions per row: 5, pitch: 3.81 mm, connection method: push-in spring connection, conductor/PCB connection direction: 45 °, color: green, pin layout: linear double pinning, solder pin: 3.4 mm, number of solder pins per potential: 2.

Features

  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Intuitive use through colour coded actuation lever
  • Angled connection enables multi-row arrangement on the PCB
  • Two solder pins reduce the mechanical strain on the soldering spots
Technical specifications
Connection spring-clamp connection
AWG cross-section AWG 24-16
Width 20.55 mm
Colour green
Height 15.4 mm
Cable cross-section 0.2-1.5 mm²
Rated voltage 160 V
Rated current 9 A
Pin number 5 pole
Grid 3.81 mm
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
