1752191 | Phoenix Contact

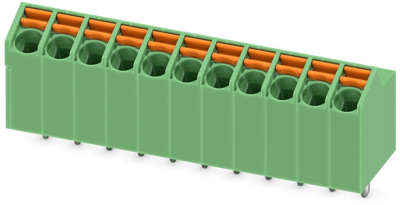

PCB terminal, 11 pole, pitch 3.5 mm, AWG 24-16, 9 A, spring-clamp connection, green, 1752191
Unit Price (€ / pc.)
4.0103 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
PCB terminal, 1752191, Phoenix Contact
PCB terminal block, nominal current: 9 A, rated voltage (III/2): 200 V, nominal cross section: 1 mm², number of potentials: 11, number of rows: 1, number of positions per row: 11, pitch: 3.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 65 °, color: green, pin layout: linear pinning, solder pin: 3.5 mm, number of solder pins per potential: 1.
Features
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive use through colour coded actuation lever
- Angled connection enables multi-row arrangement on the PCB
- Quick and convenient testing using integrated test option

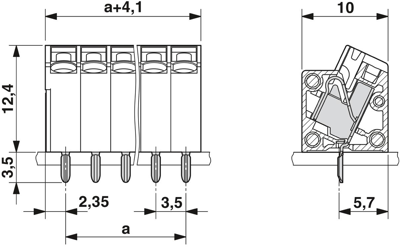

Technical specifications
| Connection | spring-clamp connection | |
| AWG cross-section | AWG 24-16 | |
| Width | 39.1 mm | |
| Colour | green | |
| Height | 15.9 mm | |
| Cable cross-section | 0.2-1.5 mm² | |
| Rated voltage | 200 V | |
| Rated current | 9 A | |
| Pin number | 11 pole | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | SK |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
