1755651 | Phoenix Contact

PCB terminal, 9 pole, pitch 5 mm, AWG 26-12, 10 A, screw connection, green, 1755651

Order No.: 63P7842
EAN: 4046356334990
MPN:
1755651
PT 1,5/ 9-PH-5,0
Series: PT

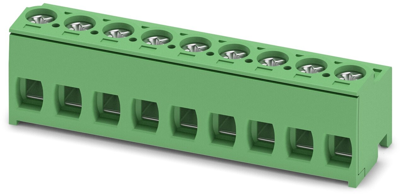

1755651 Phoenix Contact PCB Terminal Blocks Image 1

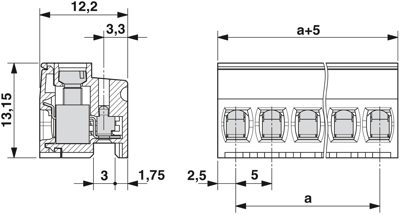

1755651 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
3.1416 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
3.14 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.1416 €

PCB terminal, 1755651, Phoenix Contact

PCB connector, nominal cross section: 1.5 mm², color: green, nominal current: 10 A, rated voltage (III/2): 400 V, contact surface: tin, type of contact: female connector, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, pitch: 5 mm, connection method: screw connection with tension sleeve, screw head form: H1L Philipps recess with slotted Torx, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PST 1,3, locking: without, mounting: without.

Features

  • Low temperature rise, thanks to maximum contact force
  • High terminal block capacity thanks to rectangular terminal block space
Technical specifications
Anschluss Schraubanschluss
AWG-Leiterquerschnitt AWG 26-12
Breite 45 mm
Farbe grün
Höhe 13.15 mm
Leiterquerschnitt 0,2-2,5 mm²
Nennspannung 400 V
Nennstrom 10 A
Polzahl 9-polig
Rastermaß 5 mm
Logistics
Ursprungsland CN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
