1755800 | Phoenix Contact

PCB terminal, 9 pole, pitch 5 mm, AWG 26-14, 10 A, screw connection, green, 1755800

Order No.: 63P7843
EAN: 4046356335287
MPN:
1755800
PT 1,5/ 9-PH-5,0 CLIP
Series: PT

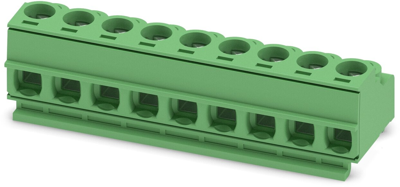

1755800 Phoenix Contact PCB Terminal Blocks Image 1

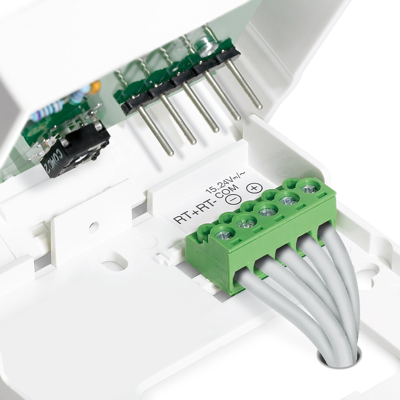

1755800 Phoenix Contact PCB Terminal Blocks Image 2
1755800 Phoenix Contact PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
2.8441 € *
Available: 0 pcs.
Available in 10 days: 9,917 pcs.
Leadtime: 1 Week **
Total Price:
2.84 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.8441 €

PCB terminal, 1755800, Phoenix Contact

PCB connector, nominal cross section: 1.5 mm², color: green, nominal current: 10 A, rated voltage (III/2): 400 V, contact surface: tin, type of contact: female connector, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, pitch: 5 mm, connection method: screw connection with tension sleeve, screw head form: H1L Philipps recess with slotted Torx, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PST 1,3, locking: without, mounting: without.

Features

  • Low temperature rise, thanks to maximum contact force
  • High terminal block capacity thanks to rectangular terminal block space
  • Can be snapped into device housing thanks to CLIP geometry
Technical specifications
Anschluss Schraubanschluss
AWG-Leiterquerschnitt AWG 26-14
Breite 45 mm
Farbe grün
Höhe 12.3 mm
Leiterquerschnitt 0,2-1,5 mm²
Nennspannung 400 V
Nennstrom 10 A
Polzahl 9-polig
Rastermaß 5 mm
Logistics
Ursprungsland CN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
