1770908 | Phoenix Contact

PCB terminal, 4 pole, pitch 2.5 mm, AWG 26-20, 6 A, spring-clamp connection, black, 1770908

Order No.: 63P8323
EAN: 4046356459488
MPN:
1770908
PTSM 0,5/ 4-2,5-H THR R32
Series: PTSM
Phoenix Contact

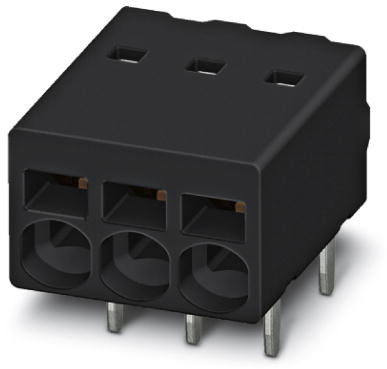

1770908 Phoenix Contact PCB Terminal Blocks Image 1

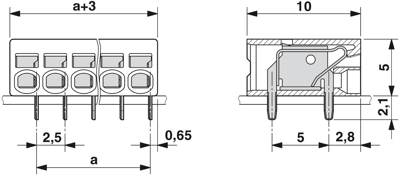

1770908 Phoenix Contact PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.0591 € *
Available: 530 pcs.
Available in 10 days: 1,590 pcs.
Leadtime: 2 Weeks **
Total Price:
1.06 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.0591 €

PCB terminal, 1770908, Phoenix Contact

PCB terminal block, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 2.5 mm, connection method: push-in spring connection, conductor/PCB connection direction: 0 °, color: black, pin layout: linear double pinning, solder pin: 2.1 mm, number of solder pins per potential: 2.

Features

  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • Designed for integration into the SMT soldering process
Technical specifications
Connection spring-clamp connection
AWG cross-section AWG 26-20
Width 10.5 mm
Colour black
Height 7.1 mm
Cable cross-section 0.14-0.5 mm²
Rated voltage 160 V
Rated current 6 A
Pin number 4 pole
Grid 2.5 mm
Logistics
Country of origin IN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
