1777561 | Phoenix Contact

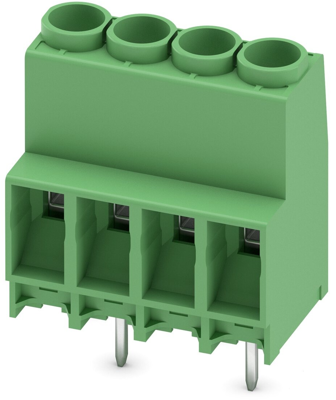

PCB terminal, 4 pole, pitch 6.35 mm, AWG 24-10, 41 A, screw connection, green, 1777561
Unit Price (€ / pc.)
3.8318 € *
Available: 0 pcs.
Available in 10 days: 832 pcs.
Leadtime: 1 Week **
Total Price:
3.83 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8318 €
10 pcs.
3.5224 €
50 pcs.
3.2011 €
100 pcs.
2.8798 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 1777561, Phoenix Contact
PCB terminal block, nominal current: 41 A, rated voltage (III/2): 1000 V, nominal cross section: 4 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, pitch: 6.35 mm, connection method: screw connection with tension sleeve, screw head form: L slotted, conductor/PCB connection direction: 0 °, color: green, pin layout: Zigzag pinning W, solder pin: 5 mm, number of solder pins per potential: 1.
Features
- Low temperature rise, thanks to maximum contact force
- Allows connection of two conductors

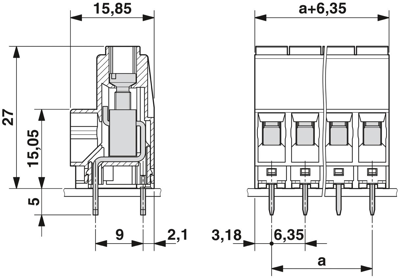

Technical specifications
| Anschluss | Schraubanschluss | |
| AWG-Leiterquerschnitt | AWG 24-10 | |
| Breite | 25.4 mm | |
| Farbe | grün | |
| Höhe | 32.5 mm | |
| Leiterquerschnitt | 0,2-6,0 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 41 A | |
| Polzahl | 4-polig | |
| Rastermaß | 6.35 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
